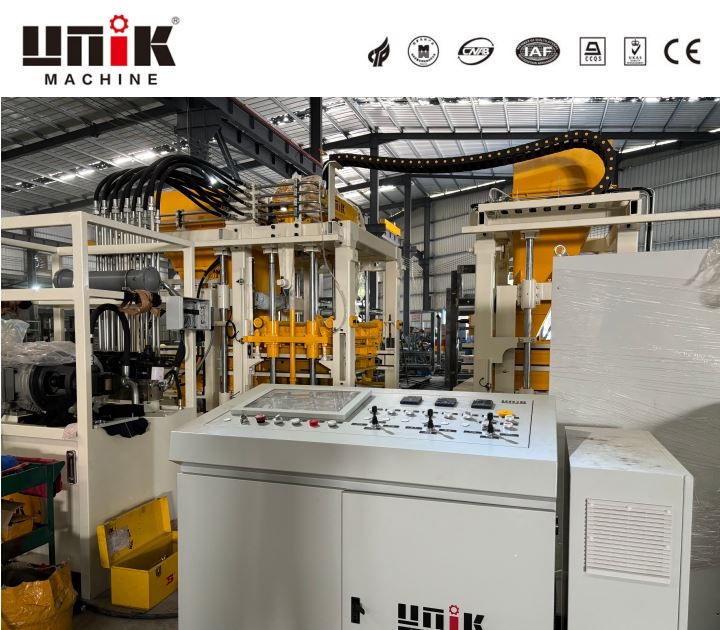

Ntau hom Block Ua Tshuab
Khoom Description
Kev faib tawm ntawm Block Forming Machine los ntawm Hom Khoom
Nyob ntawm cov khoom kawg, thaiv cov cav tov tuaj yeem muab faib ua hom hauv qab no:
Hollow thaiv txoj kev tshuab- Ua cov blocks nrog cov kab noj hniav, uas yog lub teeb yuag thiab muaj cov thermal rwb thaiv tsev zoo. Cov kab noj hniav tuaj yeem sau nrog cov ntaub ntawv insulating xws li sawdust lossis ua npuas ncauj. Haum rau cov phab ntsa tsis-load-bearing thiab infilling phab ntsa.
Khoom thaiv kev ua tshuab– Produce fully dense, cavity‑free blocks with high density and high compressive strength. Haum rau cov phab ntsa load-bearing, lub hauv paus, thiab cov qauv hnyav.
Interlocking block sib sau tshuab- Tsim cov blocks nrog txiv neej-poj niam txuas cov qauv uas tuaj yeem sib sau ua ke zoo li cov duab dhos ua si yam tsis muaj mortar. Haum rau khaws cov phab ntsa thiab toj roob hauv pes engineering.
Paving cib ua tshuab- Ua paving cib ntawm ntau yam duab, xim, thiab ntau thiab tsawg. Haum rau kev taug kev, txoj kev tsheb, plazas, thiab chaw nres tsheb.
Technical specification:
| Dimension | 5000 × 2450 × 2930mm |
| Qhov hnyav | 6T |
| Pallet loj | 880 × 680 hli |
| Hwj chim | 42.15 kWm |
| Txoj kev vibration | Siemens motors |
| Kev vibration zaus | 3800-4500 r / min |
| Lub sijhawm voj voog | 15-20s |
| Vibration Force | 50-70 KN |
Cov yam ntxwv tseem ceeb
| Cov khoom | Duab | Loj | Muaj peev xwm | Lub sijhawm voj voog | Muaj peev xwm txhua hnub |
| Hollow thaiv |  |
390 × 190 × 190 hli | 5pcs / pallet | 15-20s | 7200 pcs |
| Hollow cib |  |
240 × 115 × 90mm | 16pcs / pallet | 15-20s | 23040 pcs |
| Cib |  |
240 × 115 × 53mm | 34pcs / pallet | 15-20s | 4 8960s |
| Paver |  |
200 × 100 × 60mm | 20pcs / pallet | 15-20s | 28800 pcs |
Ua kom tiav kab Customization: Los ntawm ib lub tshuab mus rau Tsis Siv Neeg Ntau Lawm Kab
UNIK muab cov kev hloov kho kom tiav los ntawm kev tuav raw khoom, batching thiab sib tov, casting thiab sib sau, pre-kho thiab txiav, rau autoclave curing:
Raw khoom tuav system:Cia thiab tuav cov tshauv, xuab zeb, txiv qaub, cement, thiab gypsum.
Batching thiab casting system:Tsis siv neeg qhov hnyav, sib tov, thiab pwm casting.
Pre-curing thiab txiav system:Pre-curing ntawm 40-50 degree, kab rov tav thiab ntsug txiav.
Autoclave curing system:Autoclave curing rau 8-10 teev.
Cov khoom tiav ntim system:Kev sib cais, palletizing, thiab ntim.
Peb lub Hoobkas.
Kev tsim khoom
Kev xa khoom
rhiav
Txheej txheem
